Exclusive Cimat dealer
We are the exclusive Cimat dealer for the Italian market: official machines, straight from the manufacturer.
Products / Equipment
Cimat and XTON equipment
Core balancers, rotor balancers, turbo flow benches and XTON machines for DPF/FAP/GPF/SCR cleaning, parts washing and blasting. FB Parts is the exclusive Cimat dealer and an XTON dealer for Italy.
XTON dealer for Italy
We bring XTON machines for DPF/FAP/GPF/SCR cleaning, parts washing and professional blasting to the Italian market.
Guidance on the right machine
We help you pick the right model and configuration based on your volumes, filters and the components you work on.
Tailored quotation
Prices, accessories and lead times are defined on quotation: contact us for a dedicated proposal.
Core and rotor balancers
From high-speed VSR core balancers (up to 300,000 rpm) to machines for dynamic rotor balancing in two correction planes.
Core balancer
CMT-VSR
High-speed core balancing machine for passenger car and light/medium commercial vehicle turbochargers. The software shows the exact angular position of the unbalance and the correction point.
- Up to 300,000 rpm
- Turbine wheel max Ø 91 mm, compressor max Ø 109 mm
- 150–200 cores per shift
- Reverse rotation balancing
Core balancer

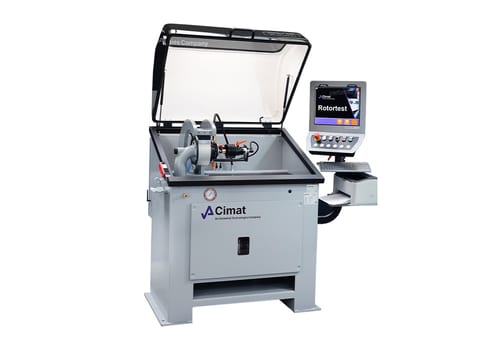

CMT-VSR BIG
The version for larger turbochargers: the same high-speed VSR technology, with capacity extended to commercial vehicle wheel sizes.
- Up to 300,000 rpm
- Turbine wheel max Ø 134 mm, compressor max Ø 179 mm
- 150–200 cores per shift
- Multistage oil filtration
Two-station balancer

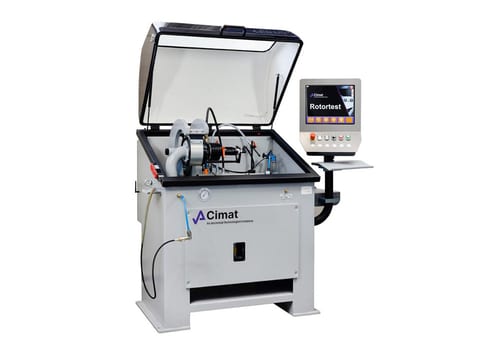

CMT-VSR TWIN
Two stations in one machine: high speed for passenger car and commercial vehicle cores, low speed for heavy-duty, agricultural and marine turbochargers.
- High-speed station up to 300,000 rpm
- Low-speed station 4,000–20,000 rpm
- Cores up to 16 kg
- Measurement uncertainty from 0.02 gmm
Two-station balancer

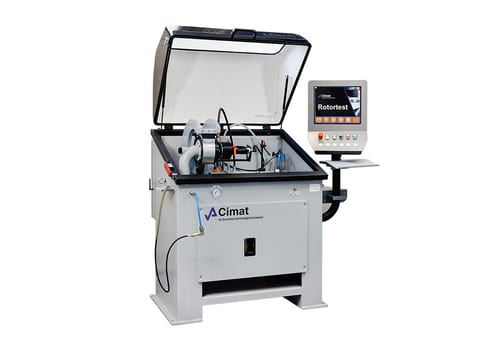

CMT-VSR BIG TWIN
The Twin with a Big-size high-speed station: wheels up to Ø 179 mm, plus the second low-speed station for the heaviest cores.
- Turbine wheel max Ø 134 mm, compressor max Ø 179 mm
- Cores up to 16 kg on the low-speed station
- 150–200 cores per shift
Rotor balancer

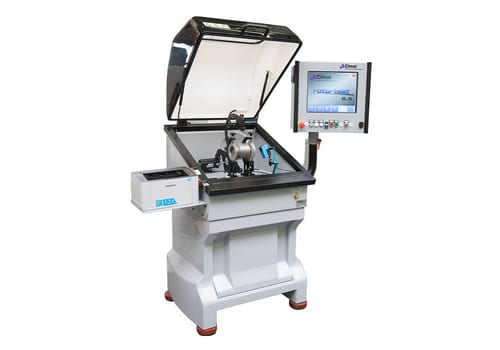

CMT-TR POLIMER
Dynamic balancing machine for turbocharger rotors in two correction planes: the first step of every rebuild, for all rotor types from 20 g to 5 kg.
- Rotors 20 g – 5 kg, max Ø 200 mm
- Up to 16,000 rpm
- Minimum residual unbalance 0.05 gmm
- ABC calibration with no test runs
Combined centre

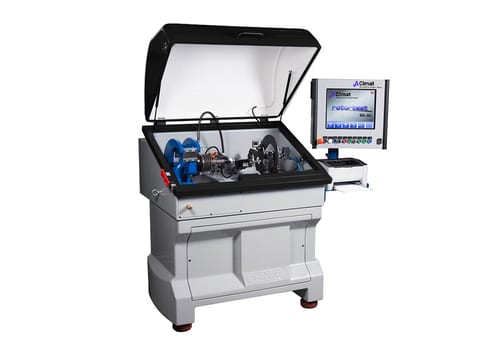

CMT-VSR BASIC
A complete balancing centre in a single station: it combines the Big-size high-speed core balancer with the belt-driven rotor balancer.
- Cores up to 300,000 rpm
- Rotors up to 16,000 rpm, max 5 kg
- Turbine wheel max Ø 134 mm, compressor max Ø 179 mm
Flow benches and combined stations
Flow benches for static and dynamic calibration of variable geometries, and stations that combine high-speed balancing and calibration in a single machine.
Flow bench

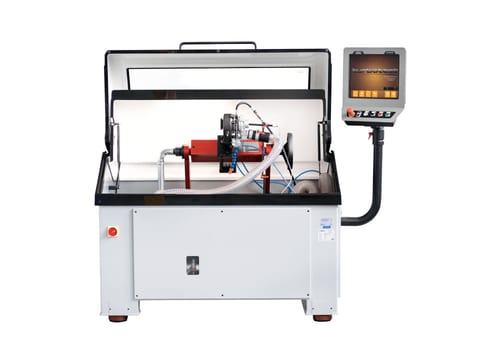

TURBO TEST
Flow bench for calibrating passenger car and commercial vehicle turbochargers: static and dynamic flow measurement, with the turbo mounted as in the vehicle for maximum accuracy.
- Turbine inlet pressure up to 250 kPa
- Mass air flow up to 450 kg/h (±1 kg/h)
- 12/24 V electric actuator testing, REA programming
- Base, Pro and Expert versions

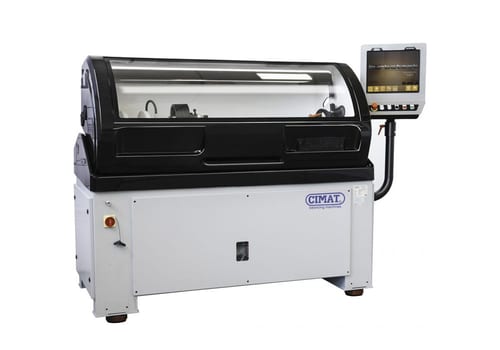

Combined station
TURBO TEST DUO
High-speed core balancer and flow bench in a single machine: balance and calibrate the turbo without moving it from the station.
- Balancing up to 300,000 rpm
- Flow bench up to 450 kg/h
- Pro and Expert versions

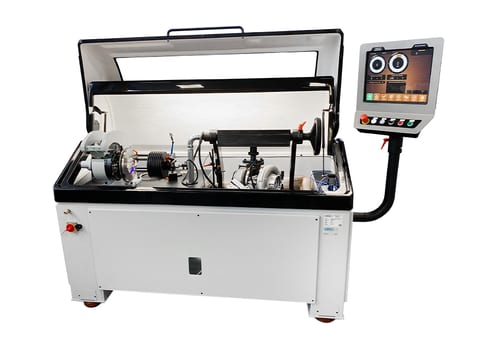

Combined station
TURBO TEST DUO BIG
The Duo in Big size: high-speed balancing for wheels up to Ø 179 mm and full calibration, including under-load pressure measurement on the Expert version.
- Turbine wheel max Ø 134 mm, compressor max Ø 179 mm
- Flow bench up to 450 kg/h
- Pressure ratio measurement under load (Expert)
XTON machines for DPF, washing and blasting
XTON range for regenerating DPF/FAP/GPF/SCR filters and catalysts, professional cabin washers and pressure blasting machines for workshops and regeneration centres.
DPF/FAP/GPF/SCR cleaning

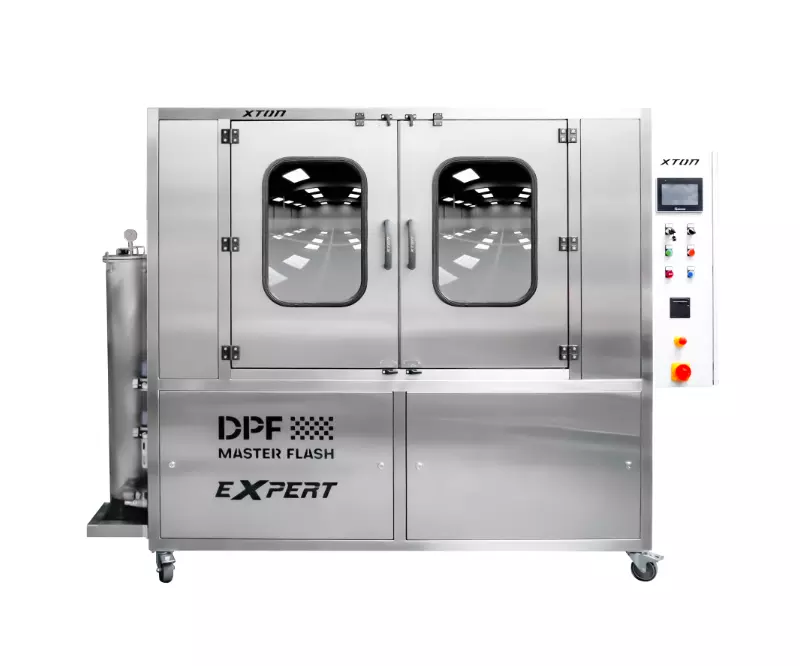

DPF Master Flash Expert
XTON’s most advanced machine for regenerating particulate filters and catalytic converters from cars, vans, trucks, buses, agricultural and construction machinery.
- Automatic bidirectional washing and drying cycle
- Back-pressure test with parameter printout
- Two insulated tanks, 570 l total capacity
- 3-stage filtration system

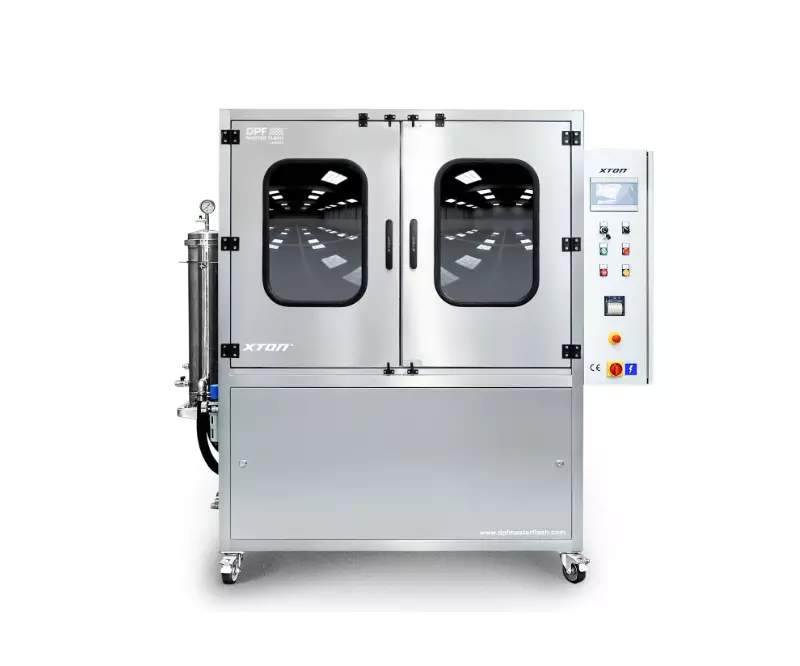

DPF regeneration
DPF Master Flash Professional PLUS
Professional version for DPF/FAP filter regeneration, with a large chamber, integrated drying and extended liquid filtration.
- 275 l tank
- 6–8 bar working pressure
- 4-stage liquid filtration, 5–300 micron
- Measurement system in mbar and kPa
DPF regeneration

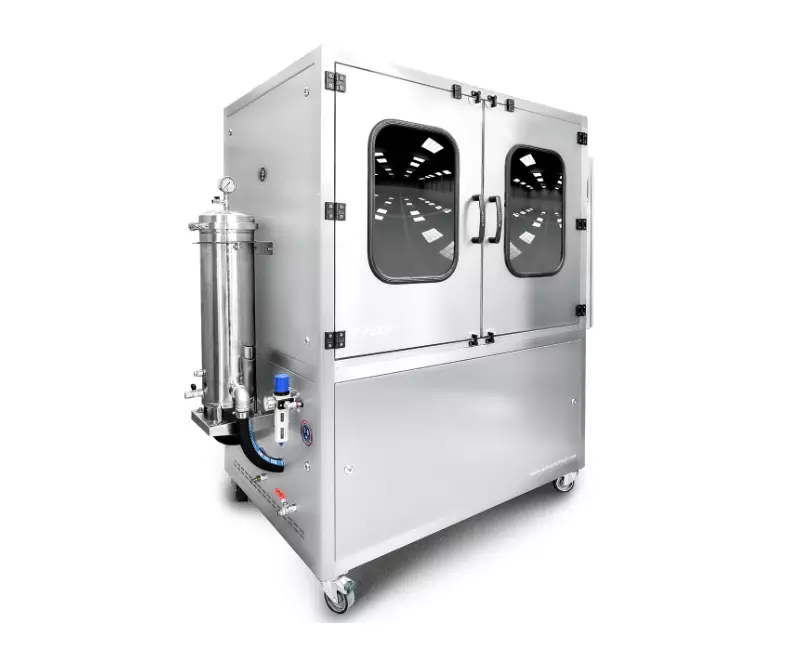

DPF Master Flash Professional
Professional machine for workshops and regeneration centres that need washing, contamination checks and filter drying.
- Tank up to 185 l
- Cleaning pump up to 133 l/min
- 4-stage liquid filtration, 5–300 micron
- Integrated drying up to 100 °C

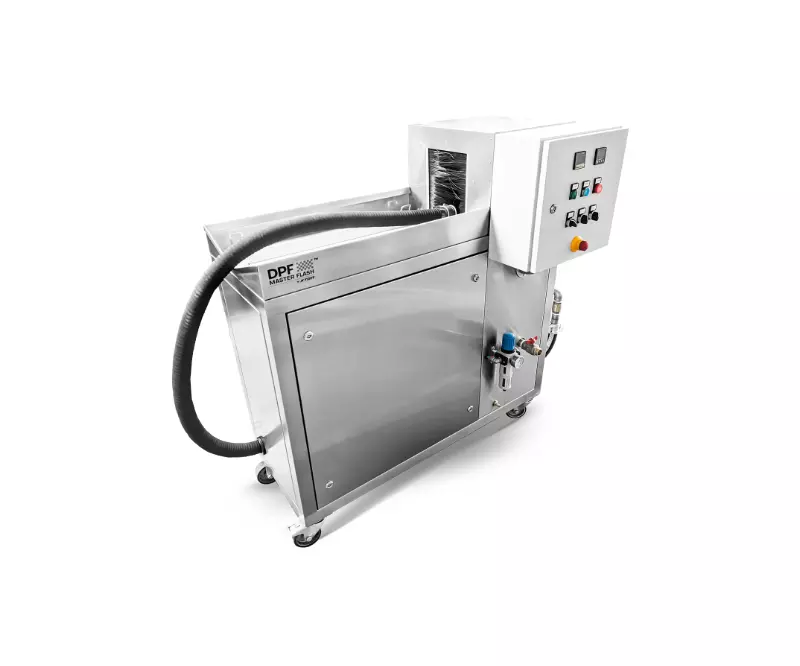

Standard DPF cleaning
DPF Master Flash Standard
Compact hydrodynamic solution for regenerating diesel particulate filters in an automatic cycle.
- 150 l tank
- Pump up to 133 l/min
- 3 bar working pressure
- Adapter kit for passenger-car DPF filters

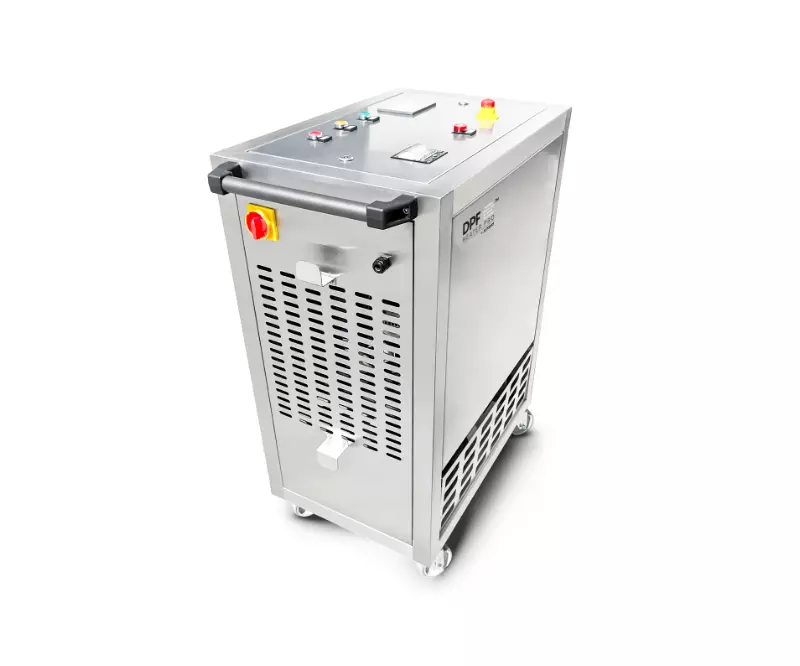

DPF dryer
DPF Heater Pro PLUS
External unit for drying particulate filters and catalysts, also designed as an add-on for machines without internal drying.
- Drying temperature 70–130 °C
- Air flow up to 430 m³/h
- Integrated measurement system
- Quick Camlock filter fastening

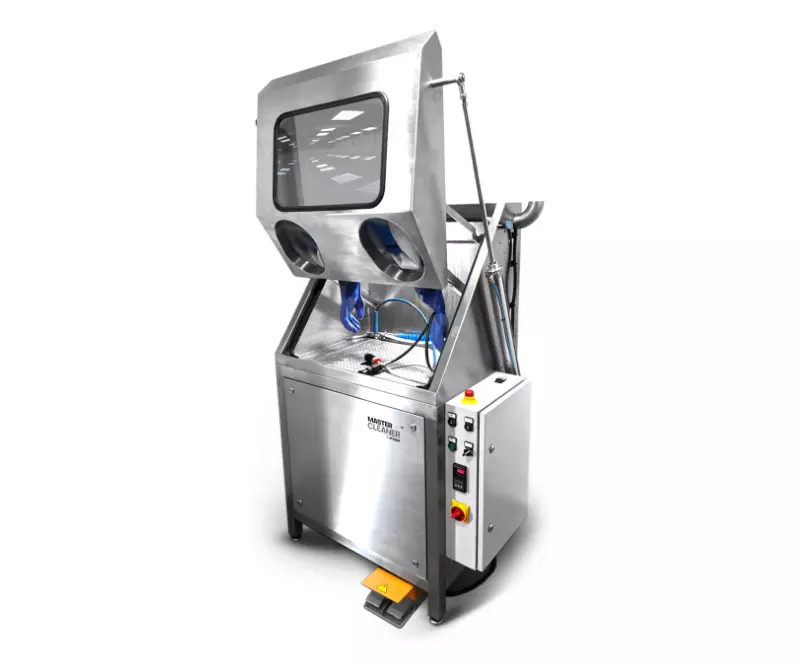

Workshop cabin washer
Master Cleaner MC 1000
Professional high-pressure stainless-steel washer for closed-loop component cleaning, with a large chamber and pneumatic opening.
- 90 l heated tank
- 140 bar pump pressure
- 99 x 74 x 64 cm chamber
- Air gun, high-pressure nozzle and brush
Compact cabin washer
Master Cleaner MC 850
Closed high-pressure cabin washer for workshops with limited space, built in stainless steel and designed for closed-loop operation.
- 90 l heated tank
- 64 x 84 x 65 cm chamber
- 140 bar pump pressure
- Dual liquid filtration system
Pressure blasting cabinet
XTON Sandblaster
Compact pressure blaster with integrated dust collector, suitable for cleaning and treating surfaces in the workshop.
- 250 l chamber
- 10 bar working pressure
- 80 x 55 x 60 cm work surface
- LED lighting and high-strength gloves
Indicative manufacturer data: configurations, accessories and versions are defined at quotation stage.
Need a quote?
Cimat and XTON machines are quoted per configuration: tell us how you work and we will prepare a dedicated proposal.
